Vertical Fixed Life Line System Suppliers in India
Universal Enterprises – Mincon – We are a Leading Authorized Distributor, Dealer, Wholesaler, Supplier, and Trader of Karam Vertical Fixed Lifeline System, Karam Fixed Lifeline System, Karam Vertex PN 7000 Lifeline System, Karam Vertical Anchorage line system on rigid cable line In India, Telangana, Andhra Pradesh, Hyderabad, Ongole.
Vertical Fixed Life Line System Description
Vertical Fixed Life Line System is an integrated solution to arrest the fall of a user who has to constantly climb up and down a ladder
Area of Application
- Industrial Ladders
- Chimney Ladders
- Telecommunication Towers
- Power Transmission Towers
- Windmill
- Radio and TV mast
- Power Supply and hydroelectric installations
- Construction sites, etc.,
Vertical Fixed Life Line System Specifications
Certifying to the Norm EN 353-1:2014+A1:2017 this vertical Fall Arrest system is an integrated solution to arrest the fall of a user who has to constantly climb up and down a ladder.
This unique feature of this system is a permanently installed Stainless Steel Shock Absorber at the top of the line which offers a distinct advantage over the textile absorber used in other lines in terms of UV degradation and resistance to harsh climate conditions. also, the Shock Absorber is constructed of a unique design that helps in the easy installation of the system.
The vertical Anchorage Line is made of Stainless steel wire rope & is maintained in a rigid position by the use of 2 mounting brackets one at the top & other at the bottom.
The Stainless-steel Rope Grab is directly connected to the Harness of the user without any additional lanyard.
To maintain the rigidity & high tension in the anchorage line, a screw-type mechanical tensioner is provided at the end of the anchorage line at the bottom, connecting it to the lower mounting bracket. The Tensioner is provided with a unique tension indicator which helps ensure appropriate tension is attained and maintained in the line.
The system also has an inspection Name Plate which is installed on the first ring of the ladder for identification, traceability, and maintenance of inspection records.
Mounting Bracket using Two Ladder Rugs
Mounting Brackets using two ladder rungs for installing Vertical Life Line Systems available in Stainless Steel and Hot dipped Galvanized Steel.
Features & Benefits
- MOC: Stainless Steel Grade 316
- Permanently installed Stainless Steel Shock Absorber at the top of the line offers a distinct advantage over the textile absorber used in other lines in terms of UV degradation and resistance to harsh climate conditions.
- Shock Absorber is constructed of a unique design that helps in the easy installation of the system.
- Intermediates to reduce vibration and proper alignment of wire rope every 10m.
- Certified to EN 353-1:2014+A1:2017

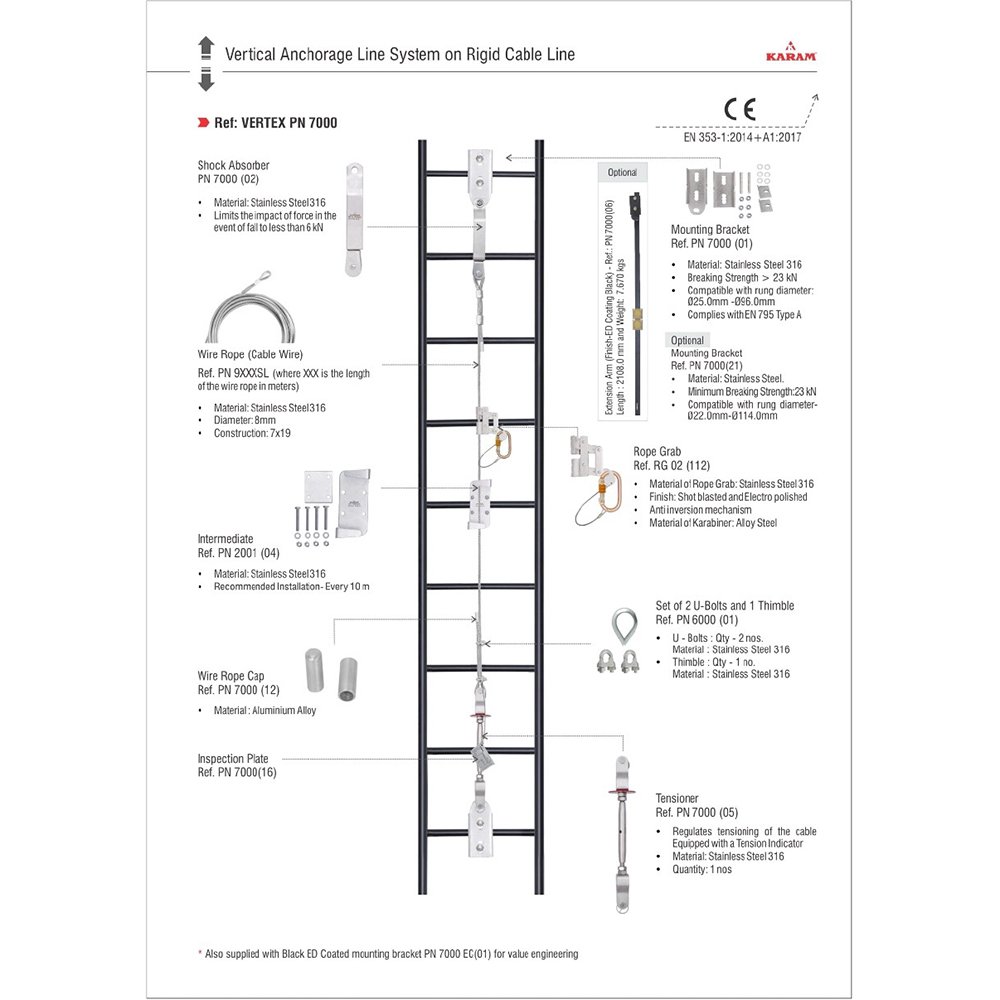

Items Included in this Vertical Life Line System
| Product Name | Product Code | Features |
|---|---|---|
| Intermediate | PN 2001(04) |
|
| Set of 2-U Bolts, 1 wire rope cap and 1 Thimble |
PN 6000(01) |
|
| Mounting Bracket | PN 7000(01) |
|
| Shock Absorber | PN 7000(02) |
|
| Tensioner | PN 7000(05) |
|
| Wire crimping assembly |
PN 7000(14) |
|
| Rope Grabs | RG 02 (112) |
|
| Wire Rope (Cable Wire) | PN 9XXXS |
|
| D-Shackle | PN 4000MU(02.5)(D) |
|
| Inspection Plate | PN 7000(16) |
|
| Optional: Mounting Brackets | PN 7000(13): Material: Stainless Steel PN 7000(13)(EC): Material: Alloy Steel with ED coated (black) |
