Horizontal Lifeline System

Price:

100,000.00

/Set

Brand:

Model Name:

Stock Status:

GST Tax %:

MOQ: 1 Set

Additional information

Product Type

Horizontal Anchorage Lifeline System on Rigid Cable Line – Over the Roof

Model Type

FLS-Horizontal

Dimensions

Rope Length 10 mtrs to 15 mtrs

Features

The Wire Rope is maintained in tension with the help of Tensioner at one end, while the other end has a swageless termination on to the Eye of the End Extremity Post / Plate

Application

, , , , ,

Warranty

1 year Warranty on product and Installtion Service provided along with product.

Weight

N/A

Product Code

Mincon-FLS-HORIZON-PN4000

Quantity Per Pack

1

Quantity Per Carton Box

1

Packaging Details

1 Set Per Box

Shipping Schedule Details

Immediate

GST HSN Code

73129000

Horizontal Lifeline System

Horizontal Lifeline System / Fixed Lifeline System karam Brand Authorized Distributor and Dealer in India, Telangana, Andhra Pradesh, Hyderabad, Ongole. Fixed Lifeline System karam Brand Suppliers in India, Universal Enterprises  – We are Leading Authorized Distributor, Dealer , Wholesaler, Supplier and Trader of Fixed Lifeline System karam Brand in India, Telangana, Andhra Pradesh, Hyderabad.

Horizontal Lifeline System:
Universal Enterprises – We are Leading Authorized Distributor, Dealer , Wholesaler, Supplier and Trader of HORIZONTAL LIFELINE SYSTEM in India, Telangana, Andhra Pradesh, Hyderabad, Nellore, Sri City, Tada, Ongole. Horizontal Lifeline System Dealer Supplier & Solution Company in India Hyderabad Telangana Andhra Pradesh.

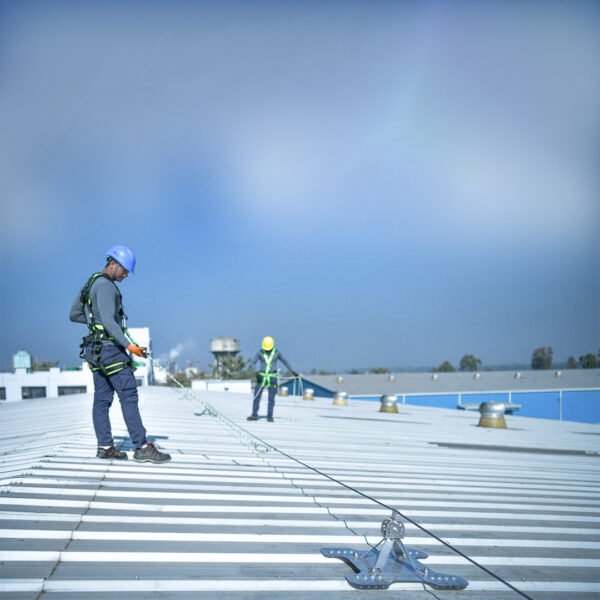

Horizontal Anchorage Lifeline System on Rigid Cable Line Ref : HORIZON PN 4000 ( Over the Roof ) Horizon PN 4000 provides permanent anchorage to a user who has to constantly move along an elevated horizontal track. It comprises of a Stainless Steel Wire Rope (grade 316) of 8mm diameter running all along the horizontal track, and is installed at the ends using special End Extremity Posts. The Intermediate brackets hold the wire in position all along the length of the wire, and are installed at intervals of Maximum 15mtrs. The Wire Rope is maintained in tension with the help of Tensioner at one end, while the other end has a swageless termination on to the Eye of the End Extremity Post.

Horizontal Anchorage Lifeline System on Rigid Cable Line Ref : HORIZON PN 4000 ( Floor / Ceiling Mounted ) Horizon PN 4000 provides permanent anchorage to max. 4 users simultaneously, who has to constantly move along an elevated horizontal track. It comprises of a Stainless Steel Wire Rope grade 316 of 8 mm diameter running all along the horizontal track. It is installed at the ends using special Universal Extremity Plates. The Intermediate brackets hold the wire in position all along the length of the wire, and are installed at intervals of 10mtrs. to 15 mtrs. The line is maintained in tension with the help of Tensioner at one end, while the other end has a swage less termination on to the Universal Extremity plate.

Horizon PN 4000 has the unique distinction of being certified by Sira for ATEX to comply with use in potentially explosive atmosphere (as per Potentially Explosive Atmospheres Directive 2014/34/EU), and conforms to Norms EN ISO 80079-36:2016, and EN ISO 80079-37:2016. The system is certified to be intrinsically safe, hence is an ideal choice for use in Industries like Petroleum/ Petro-Chemical Plants without fear of causing explosion due to any sparking. The system can also be used in Truck Loading / unloading, Advertisement Bill Boards, Industrial Cranes, Oversized machines, Reactors, Turbines etc.The System Conforms to EN 795:2012 Type C and TS 16415:2013 (for upto 2 users) & Atex approved & for use in potentially explosive areas.

Additional information

Product Type

Horizontal Anchorage Lifeline System on Rigid Cable Line – Over the Roof

Model Type

FLS-Horizontal

Dimensions

Rope Length 10 mtrs to 15 mtrs

Features

The Wire Rope is maintained in tension with the help of Tensioner at one end, while the other end has a swageless termination on to the Eye of the End Extremity Post / Plate

Application

, , , , ,

Warranty

1 year Warranty on product and Installtion Service provided along with product.

Weight

N/A

Product Code

Mincon-FLS-HORIZON-PN4000

Quantity Per Pack

1

Quantity Per Carton Box

1

Packaging Details

1 Set Per Box

Shipping Schedule Details

Immediate

GST HSN Code

73129000
