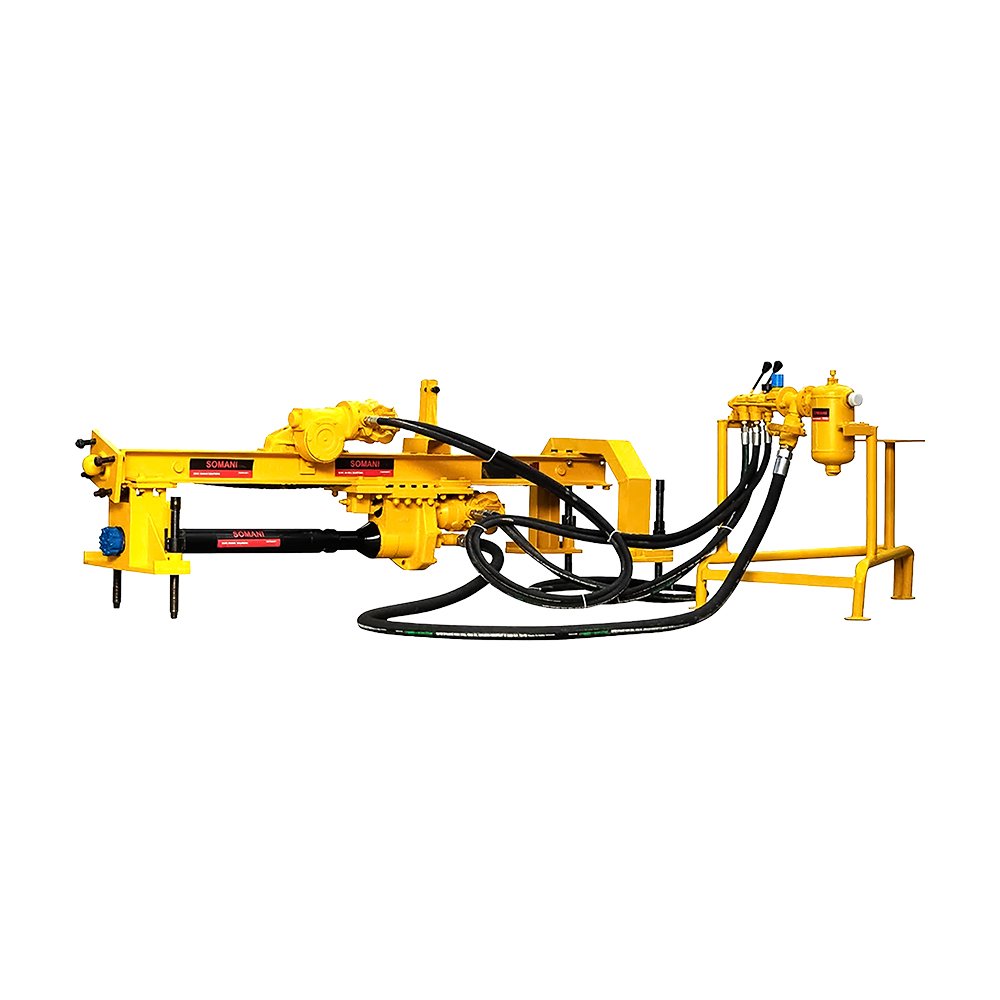

Slim Drill Machine LD4

Price:

/Nos

Brand:

Material:

Solution:

Stock Status:

GST Tax %:

Color:

Country of Origin:

MOQ: 1 Nos

Additional information

Brand

Model Type

LD4

Dimensions

Horizontal: 20 Mtrs, Vertical: 30Mtrs

Features

Compact Design, Longer working life, Quality Tested

Weight

500kg (1,102lb)

Product Code

Mincon-SlimDrill Machine-LD4

Quantity Per Pack

1 No

Shipping Schedule Details

Immediate

Slim Drill Machine LD4

Slim Drill Machine LD4 Manufacturers and Suppliers In Hyderabad, Andhra Pradesh

Universal Enterprises / Mincon  – We are the Leading Authorized Distributor, Dealer, Wholesaler, Supplier, and Trader of Slim Drill Machine / Slim Drill Machine Ld4 Mincon-100 Model in India, Telangana, Andhra Pradesh, Hyderabad, Ongole.

Slim Drill Machine LD4 Description

Pneumatically operated drill capable of drilling in both down the hole jack Hammer modes-ideally suitable for drilling lead holes for diamond wire cutting of decorative marble, granite rocks, etc. The machine has been specially designed for precision drilling of matching holes and the ability to drill holes in both vertical and horizontal positions. A ball joint is provided at the bottom of the mast to facilitate precision alignment for matching holes. Provided with one spike two anchoring rods adjusting screws to maintain perfect rigidity during drilling. Light in weight, the machine can be easily dismantled into four subassemblies-each weighings not more than 50 kg – thus ensuring easy portability and repositioning.

Supplier and Dealer Of all typer of Rock Drilling Equipment in India, Telangana, Andhra Pradesh, Hyderabad, Ongole. Rock Drilling” has always been an arduous task and in the above context-we take pleasure in introducing “MINCON” Rock Drilling Equipments. Mincon Rock Drills is a Manufacturer of rock drilling equipment, committed to providing the world Drillers with drilling Rigs of the highest standards. It is through continuous research and development that we are able to bring our customers the very best that is available to complete the most difficult drilling tasks in the toughest conditions.

Our Products: “Mincon” equipment are performing all over India and overseas to the entire satisfaction of the valued customers and this track record is attributable to Robust & State-of-The-Art-Design, Quality Assured Manufacturing Technologies and Prompt after-sales services. “Mincon” Drilling Machines are Cost-effective sustained performers.

Slim Drill MinconSPL-100 (LD-4) Pneumatically operated Drill capable of Drilling in both DOWN THE HOLE & JACKHAMMER modes-ideally suitable for drilling lead holes..

Slim Drill Machine LD4  Specifications

Type: Pneumatic drill

Drill Depth: 100 Feet

Our company has mastered the art of providing a Horizontal Slim Drill.

TECHNICAL DATA:

  • MODE OF DRILLING: DOWN THE HOLE AIR HAMMER
  • Hole Diameter: 90mm ~ 115mm (3½” ~ 4½”)
  • Drill Pipe Diameter: 76mm ( 3”)
  • Drill Pipe Length: 1.22mtrs. (4ft)
  • Max. Drilling Depth (Vertical Position): 30mtrs. (100ft) under favorable drilling conditions
  • Max. Drilling Depth (Horizontal Position): 20mtrs. (65ft) under favorable drilling conditions
  • Height of Hole: From Ground to Centre of Hole: 125mm
  • Rotary Head (Torque): 1250Nm
  • Speed=: 0~60rpm
  • Feed Force: 21.5kN
  • Total Length (Feed): 2500mm
  • Travel Length: 1300mm
  • Mounting: Structural Frame
  • Recommended Air Compressor
  • Working Pressure: 7Bar(Min) up to 14Bar (Max)
  • Free Air Delivery 300CFM (min) up to 450CFM (max)
  • Transport Length 2650mm (8.7ft)
  • Transport Width 700mm (2.3ft)
  • Transport Height 900mm (2.9ft)
  • Weight approx. 500kg (1,102lb)

Slim Drill Machine LD4  Features

  • Stable Drilling capabilities
  • Structurally designed for extra rigidity
  • Anchoring arrangement ensures perfect stability during drilling
  • Rotation and winch units provide additional power for faster drilling and rapid withdrawals, longer tool life, etc…
  • Compact design
  • Longer working life
  • Quality tested

Slim Drill Machine Manufacturers in India

Slim Drill Machine Suppliers in India

Slim Drill Machine Mining Equipment Suppliers in Hyderabad

LD4 Drill Machine Suppliers in Telangana

Vertical Slim Drill Machine LD4 in Telangana

Horizontal Slim Drill Machine LD4 in Andhra Pradesh

Drill Machine LD4 Manufacturers in Ongole

Slim Drill Machine Suppliers in Vizag

Additional information

Brand

Model Type

LD4

Dimensions

Horizontal: 20 Mtrs, Vertical: 30Mtrs

Features

Compact Design, Longer working life, Quality Tested

Weight

500kg (1,102lb)

Product Code

Mincon-SlimDrill Machine-LD4

Quantity Per Pack

1 No

Shipping Schedule Details

Immediate
